Protection against humidity due and rusting by complete impregnation, maximum ambient temperature 40°C, insulation class B, protection system IP 00, for installation up to IP 23, prepared for protection class II, connections for screw terminals according DGUV Vorschrift 3, separated terminals, separated winding and functional screening, midpoint for monitoring equipment of the winding, built-in PTC thermistors acc, to DIN 44081 (120°), frequency 50-60 Hz

Zeichen Suitable for medical rooms
Zeichen CE
Zeichen Approved for UK
Type: SM
Phase: 1-phase
Rated supply voltage: 230 V
Rated output voltage: 230 V
Rating: 3,15 kVA | 4,00 kVA | 5,00 kVA | 6,30 kVA | 7,00 kVA or 8,00 kVA
Design: vertical
short-circuit voltage: < 3% of the rated input voltage
no-load current: < 3% of the rated input current
inrush current: < 12 times of the rated input current

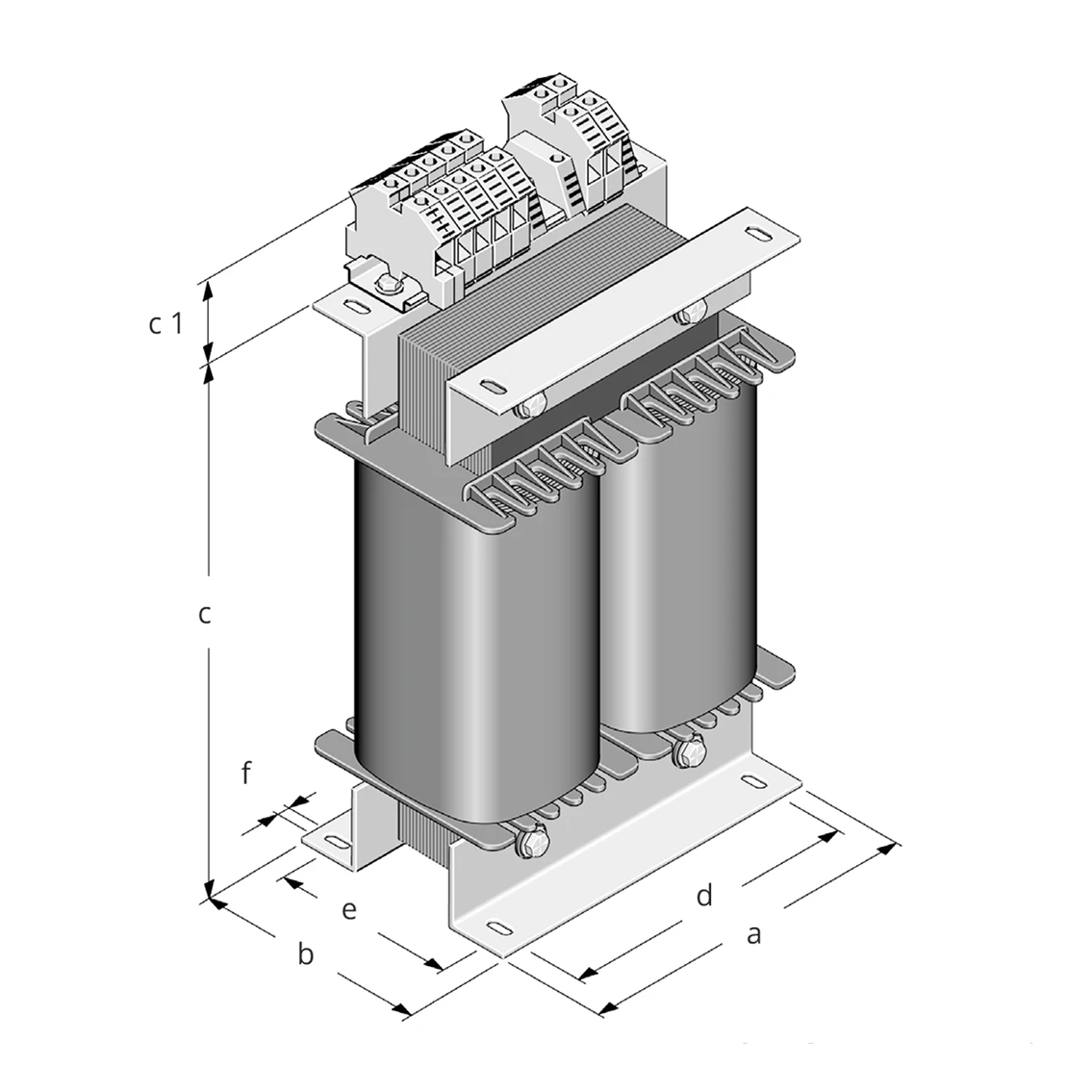

Drawing SM Single-phase isolating transformers for the supply of medical rooms
Single-phase isolating transformer for medical rooms - type SM

Request SM Single-phase isolating transformers for the supply of medical rooms now

Are you interested in this product? Put together your desired configuration here. You can then provide further information in the inquiry form.

Product variants

Typ
type		Leistung
rating KVA		a
mm		b
mm		c
mm		c 1
mm		d
mm		e
mm		f
mm		Gewicht
weight kg
SM 3,5 3,15 200 213 260 60 - 80 140 181 10,0 34,5
SM 4,5 4,00 240 178 310 60 - 80 200 150 10,0 40,0
SM 5,0 5,00 240 203 310 60 - 80 200 165 10,0 46,5
SM 6,3 6,30 280 203 365 60 - 90 240 161 12,0 54,0
SM 7,5 7,00 280 218 365 60 - 90 240 176 12,0 63,0
SM 8,8 8,00 280 233 365 60 - 90 240 191 12,0 77,0

Other specifications are available on request. You can state your wishes and requirements in the inquiry form. Inquire now.
