Protection against humidity due and rusting by complete impregnation, maximum ambient temperature 40°C, insulation class B, protection system IP 00, for installation up to IP 23, prepared for protection class II, connections for screw terminals according to DGUV Regulation 3, separated terminals,separated windings and functional screening, midpoint for monitoring equipment of the winding, built-in thermistors (PTC) according EN 0898-1-401, frequency 50-60 Hz

Zeichen Suitable for medical rooms
Zeichen CE
Zeichen Approved for UK
Type: DSM
Phase: 3-phase
Rated supply voltage: 3 x 400 V
Rated output voltage: 3 x 230 V
Rating: 3,15 kVA | 4,00 kVA | 5,00 kVA | 6,30 kVA | 7,00 kVA | 8,00 kVA or 10,00 kVA
Design: vertical
short-circuit voltage: < 3% of the rated input voltage
no-load current: < 3% of the rated input current
inrush current: < 12 times of the rated input current

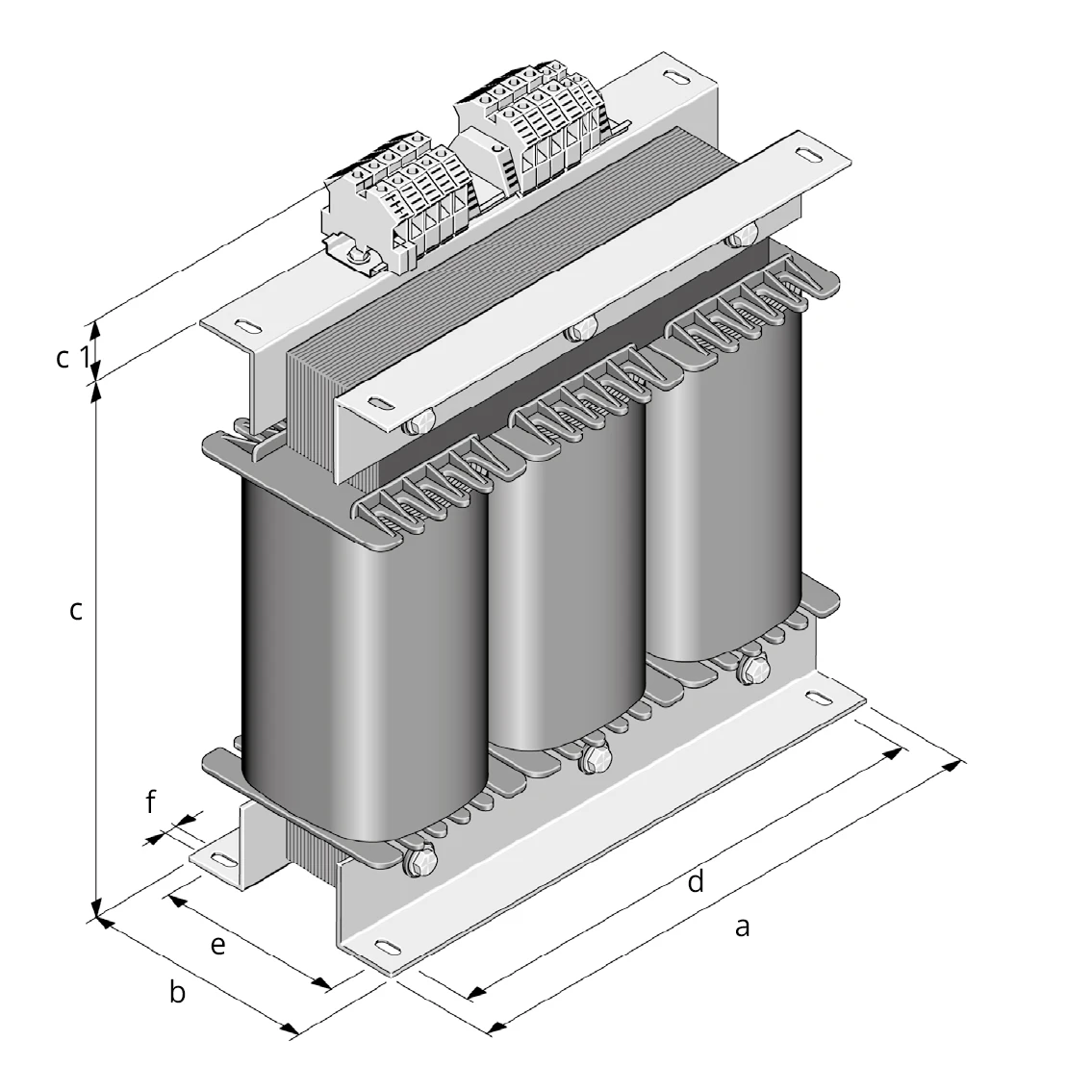

Drawing DSM Three-phase isolating transformers for the supply of medical rooms
Three-phase isolating transformer for medical rooms - type DSM

Request DSM Three-phase isolating transformers for the supply of medical rooms now

Are you interested in this product? Put together your desired configuration here. You can then provide further information in the inquiry form.

Product variants

Typ
type		Leistung
Rating KVA		a
mm		b
mm		c
mm		c 1
mm		d
mm		e
mm		f
mm		Gewicht
weight kg
DSM 3,5 3,15 300 196 270 60 - 90 240 165 11,0 41,0
DSM 4,0 4,00 300 206 270 60 - 90 240 175 11,0 47,0
DSM 5,0 5,00 360 182 312 60 - 90 310 144 11,0 52,0
DSM 6,3 6,30 360 197 312 60 - 90 310 160 11,0 70,0
DSM 7,5 7,00 420 177 312 60 - 90 310 160 11,0 70,0
DSM 8,8 8,00 420 201 365 60 - 90 370 156 11,0 78,0
DSM 10,0 10,00 420 227 365 60 - 90 370 186 11,0 100,0

Other specifications are available on request. You can state your wishes and requirements in the inquiry form. Inquire now.
